Prognostic impact of CD57, CD68, M-CSF, CSF-1R, Ki67 and TGF-beta in soft tissue sarcomas

  • Sveinung W Sorbye1, 2Email author,

    Affiliated with

    • Thomas K Kilvaer2,

      Affiliated with

      • Andrej Valkov1, 2,

        Affiliated with

        • Tom Donnem3, 4,

          Affiliated with

          • Eivind Smeland5,

            Affiliated with

            • Khalid Al-Shibli2, 5,

              Affiliated with

              • Roy M Bremnes3, 4 and

                Affiliated with

                • Lill-Tove Busund1, 2

                  Affiliated with

                  BMC Clinical Pathology201212:7

                  DOI: 10.1186/1472-6890-12-7

                  Received: 17 February 2012

                  Accepted: 3 May 2012

                  Published: 3 May 2012

                  Abstract

                  Background

                  Prognostic markers in curable STS may have the potential to guide therapy after surgical resection. The purpose of this study was to clarify the prognostic impact of the presence of cells and growth factors belonging to the innate immune system in soft tissue sarcomas (STS). The significance of macrophages (CD68), their growth factor macrophage colony-stimulating factor (M-CSF), its receptor colony-stimulating factor-1 receptor (CSF-1R), natural killer cells (CD57) and the general immunomodulating molecule (TGF-beta) are all controversial in STS. Herein, these markers are evaluated and compared to the cell proliferation marker Ki67.

                  Methods

                  Tissue microarrays from 249 patients with non-gastrointestinal (non-GIST) STS were constructed from duplicate cores of viable and representative neoplastic tumor areas and duplicate cores of peritumoral capsule. Immunohistochemistry was used to evaluate the expression of CD68, M-CSF, CSF-1R, CD57, TGF-beta and Ki67 in tumor and peritumoral capsule.

                  Results

                  In univariate analyses increased expression of M-CSF (P = 0.034), Ki67 (P < 0.001) and TGF-beta (P = 0.003) in tumor correlated with shorter disease-specific survival (DSS). Increased expression of CD68 in tumor correlated significantly with malignancy grade (P = 0.016), but not DSS (P = 0.270). Increased expression of Ki67 in peritumoral capsule tended to correlate with a shorter DSS (P = 0.057). In multivariate analyses, co-expression of M-CSF and TGF-beta (P = 0.022) in tumor and high expression of Ki67 (P = 0.019) in peritumoral capsule were independent negative prognostic factors for DSS.

                  Conclusions

                  Increased co-expression of M-CSF and TGF-beta in tumor in patients with STS, and increased expression of Ki67 in peritumoral capsule were independent negative prognostic factors for DSS.

                  Keywords

                  Soft tissue sarcomas STS Malignancy grade DSS Macrophages NK cells CD57 Ki67 TGF-beta TMA

                  Background

                  Soft tissue sarcomas (STS) are heterogeneous malignancies originating from the mesenchymal lineage. There are more than 50 different histological entities and they comprise less than 1% of adult malignancies [1]. The STS are among the most aggressive cancer types with a lethality of 40–50% due to metastasis or local relapse [2]. There are several prognostic factors which determine tumor progression, and ultimately the patient’s outcome, including positive resection margins, presence of local recurrence, histological entity and tumor grade, size, location and depth [39].

                  Many studies have been designed to investigate the prognostic factors of STS by using immunohistochemical methods [10], and most of the published data have focused on the expression of markers for cell kinetics and regulatory proteins of the cell cycle.

                  Immunotherapy and vaccines with the capability to activate the host immune system may have a role as second-line therapy, and characterization of the in situ cellular and molecular immunology form the basis for such therapy [11]. Hence, clinical data on the prognostic significance of different immunological cells are warranted.

                  The innate immune system consists mainly of granulocytes, macrophages, natural killer (NK) cells, dendritic cells (DCs) and their corresponding growth factors and receptors [12]. They mediate major histocompatibility complex unrestricted cytotoxicity and are essential in the immediate limitation and elimination of foreign challenges to the host, including defense against cancer, but lack the ability of ‘memory’ when re-exposed to the same antigen[12, 13]. The NK cell has a well-established role in tumor rejection in a variety of cancers[1416], and the mechanism by which these cells discriminate tumor from normal cells has provided new insights into tumor immunosurveillance and has suggested new strategies in the treatment of human cancer [17, 18].

                  Ki67 expression increases with increasing malignancy grade in many cancer types of different lineages [1923]. In Ewing’s sarcoma, high Ki67 expression was an independent prognostic factor for progression free survival and overall survival independent of treatment type [24].

                  We have previously reported the prognostic significance of the humoral immune system by lymphocyte infiltration in tumor [25] and peritumoral capsule [26] of STS. We have also reported the significance of the innate immune system by the correlation of expression of macrophages (CD68), their growth factor macrophage colony-stimulating factor (M-CSF), its receptor colony-stimulating factor-1 receptor (CSF-1R) and histological grade in STS [27]. It was important to validate these findings in a different material, explore the relationship to expression of Ki67, disease-specific survival (DSS) and include other markers as CD57 and TGF-beta. The purpose of this study was to examine the prognostic role of the innate immune system in STS by assessing the expression of CD68, M-CSF, CSF-1R, CD57, TGF-beta and Ki67.

                  Methods

                  Patients and clinical samples

                  The National Cancer Data Inspection Board and The Regional Committee for Research Ethics approved the study. The material was collected from our approved biobank for paraffin embedded material and slides. Data were analyzed anonymously.

                  Primary tumor tissue from untreated patients diagnosed with STS at the University Hospital of North Norway (UNN) from 1973 to 2006 and the Hospitals of Arkhangelsk region, Russia, from 1996 to 2006 was used in this retrospective study. 496 potentially suitable patient records were identified from the hospital database, but only 249 of these were eligible based on complete medical records and adequate paraffin-embedded tissue blocks. In 80 of these cases it was also possible to obtain tissue from the peritumoral capsule for TMA [26]. This report includes follow-up data for 167 Norwegian and 82 Russian patients until September 2009. The median follow-up was 38 (range 0–392) months.

                  The histology of all soft tissue sarcoma cases was reviewed according to modern classification (WHO, 2002) by two dedicated pathologists (AV and SWS). For the Russian material, new slides were made from all paraffin blocks. For the Norwegian material, new slides were made when necessary. All biopsies were immunostained with cytokeratin (CK), c-kit (CD117), Actin, smooth muscle actin (SMA), vimentin (VIM) and CD34. Some slides were also stained with S100 if necessary to rule out differential diagnoses. Further molecular methods were, in general, not considered necessary for differential diagnostics, but in some cases PCR or FISH were performed. About 10% of the initial diagnoses were revised due to altered classification and the appearance of new entities such as GIST. All carcinosarcomas, endometrial sarcomas, carcinomas and lymphomas were excluded.

                  Microarray construction

                  Tissue microarrays (TMAs) were constructed for high-throughput molecular pathology research[2830]. The slides were evaluated by two pathologists (AV and SWS) using light microscope to identify the tumor and the peritumoral capsule. The most representative areas of the tumor and peritumoral capsule were carefully selected and marked on the hematoxylin and eosin (HE) slides for the corresponding donor blocks and sampled for the tissue microarray collector blocks[26]. The TMAs were assembled using a tissue-arraying instrument (Beecher Instruments).

                  Studies suggest that punching multiple 0.6 mm cores from different regions captures the heterogeneity of the capsule more accurately than single 2 to 4 mm cores [30]. Hence, we obtained two 0.6-mm cores of tumor and two cores from peritumoral capsule (four cores from each patient). These were secured from different representative areas of the tissue block and selected to be as representative as possible. To include all core samples, 12 tissue array blocks were constructed. Multiple 4-μm sections were cut with a Micron microtome (HM355S) and specific antibodies were stained for immunohistochemistry (IHC).

                  Immunohistochemistry (IHC)

                  Sections were deparaffinized with xylene and rehydrated with ethanol. Antigen retrieval was performed by placing the specimens in 0.01 M citrate buffer at pH 6.0 and exposing them to two repeated microwave heatings of 10 min at 450 W. The slides were then transferred to the Ventana Benchmark, XT automated slide stainer (Ventana Medical System, Illkirch, France). Tissue sections were incubated with primary mouse monoclonal antibodies recognizing Ki67, CD68 and CD57 (Ventana Medical System), as well as rabbit polyclonal M-CSF, CSF-1R (clone H-300; Santa Cruz Biotechnology, Santa Cruz, CA, USA) and TGF-beta (clone sc-146; Santa Cruz). The dilution was 1:5 for M-CSF, 1:25 for CSF-1R and 1:50 for TGF-beta. All Ventana antibodies were prediluted by the manufacturer. The incubation periods were 16 min for Ki67, CD57 and CD68, and 28 min for TGF-beta, M-CSF and CSF-1R. As secondary antibodies, biotinylated goat antimouse IgG and mouse antirabbit IgM, both 200 lg ml, were used. The Dako EnVision + System-Horseradish Peroxidase [diaminobenzidine (DAB)] kit (Dako, Glostrup, Denmark) was used to block endogenous peroxidase. This was followed by application of liquid diaminobenzidine as substrate-chromogen, yielding a brown reaction product at the site of the target antigen (iView DAB® procedure). Finally, slides were counterstained with hematoxylin to visualize the nuclei. For each antibody, including controls, all TMA staining were performed in a single experiment. As negative staining controls, the primary antibodies were replaced with the primary antibody diluents. In the TMA we also used cores from carcinomas and normal tissue as positive and negative controls.

                  Scoring of IHC

                  The ARIOL imaging system (Genetix, San Jose, CA) was used to scan the slides for antibody staining of the TMAs[26]. The number of CD57 positive cells (including NK cells) and CD68 positive cells (including macrophages) in tumors were scored as 0 (no cells), 1 (1–5 cells), 2 (6–19) or 3 (20+ cells) per 0.6 mm core. Examples are shown in Figure 1. Regarding M-CSF, CSF-1R, Ki67 and TGF-beta, expression was scored as: 0, negative; 1, weak; 2, intermediate; and 3, strong. The mean score from the duplicate cores from tumor or capsule, respectively, was used. Marker expression was dichotomised (low vs. high), and high expression defined as mean score ≥ 0.30 for CD68, ≥ 0.75 for TGF-beta, ≥ 2.00 for Ki67 and ≥ 0.01 for CD57, M-CSF and CSF-1R. All samples were anonymized and independently scored by two pathologists (AV and SWS). When disagreement, the slides were re-examined and consensus was reached by the observers. When assessing a variable for a given score, the scores of the other variables and the outcome were hidden from the observers.
                  http://static-content.springer.com/image/art%3A10.1186%2F1472-6890-12-7/MediaObjects/12907_2012_99_Fig1_HTML.jpg
                  Figure 1

                  IHC microscopic pictures of TMA of soft tissue sarcoma representing different expression of CD68 and M-CSF. (A) CD68 low expression; (B) CD68 high expression; (C) M-CSF low expression; (D) M-CSF high expression. Original magnification X 100 and 400.

                  Statistical methods

                  All statistical analyses were done using the statistical package SPSS (Chicago, IL), version 18. The immunohistochemistry scores from each observer were compared for interobserver reliability by use of a two-way random effect model with absolute agreement definition. The intraclass correlation coefficient (reliability coefficient) was obtained from these results.

                  The Chi-square test and Fishers Exact test were used to examine the association between molecular marker expression and various clinicopathological variables. Univariate analyses were performed using the Kaplan-Meier method, and statistical significance between survival curves was assessed by the log rank test. Disease-specific survival (DSS) was determined from the date of confirmed STS diagnosis.

                  The multivariate analysis was carried out using the Cox proportional hazards model to assess the independent impact of each pre-treatment variable on survival in the presence of other variables. Only significant variables from the univariate analyses were entered into the Cox regression analysis. Probability for stepwise entry and removal was set at 0.05 and 0.10, respectively. The significance level used was p < 0.05.

                  Results

                  Clinicopathological variables

                  Demographic, clinical, and histopathological variables are shown in Table 1. Patient age range was 0–91 years (mean 55 years), and 44% of the patients were males. The non-GIST STS comprised 68 undifferentiated pleomorphic sarcoma, 67 leiomyosarcoma, 34 liposarcoma, 20 malignant fibroblastic/myofibroblastic tumors, 16 rhabdomyosarcoma, 16 synovial sarcoma, 13 angiosarcoma, 11 malignant peripheral nerve sheath tumors (MPNST) and 4 other STS. There were 61 low grade STS (24%) and 188 high grade (FNCLCC grade 2 and 3) STS (76%).
                  Table 1

                  Prognostic clinicopathological variables as predictors for disease-specific survival soft tissue sarcomas (univariate analysis, log rank test), N = 249

                  Characteristic

                  Patients (n)

                  Patients (%)

                  Median survival (months)

                  5-Year survival (%)

                  P

                  Age



                   ≤ 20 years

                  20

                  8

                  15

                  40

                  0.126

                   21-60 years

                  113

                  45

                  68

                  52



                   > 60 years

                  116

                  47

                  30

                  40



                  Gender



                   Male

                  110

                  44

                  41

                  46

                  0.390

                   Female

                  139

                  56

                  45

                  45



                  Nationality



                   Norwegian

                  167

                  67

                  63

                  51

                  0.011

                   Russian

                  82

                  33

                  22

                  34



                  Histology



                   Undifferentiated

                   pleomorphic sarcoma

                  68

                  27

                  29

                  40

                  0.102

                   Leiomyosarcoma

                  67

                  27

                  45

                  46



                   Liposarcoma

                  34

                  14

                  NR

                  67



                   MF/MFT

                  20

                  8

                  43

                  50



                   Angiosarcoma

                  13

                  5

                  10

                  31



                   Rhabdomyosarcoma

                  16

                  6

                  17

                  38



                   MPNST

                  11

                  4

                  49

                  45



                   Synovial sarcoma

                  16

                  6

                  31

                  29



                   Other STS

                  4

                  2

                  NR

                  75



                  Tumor localization



                   Extremities

                  89

                  36

                  100

                  53

                  0.348

                   Trunk

                  47

                  29

                  32

                  44



                   Retroperitoneum

                  37

                  25

                  25

                  38



                   Head/Neck

                  18

                  7

                  15

                  41



                   Visceral

                  58

                  23

                  30

                  42



                  Tumor size



                   < 5 cm

                  74

                  30

                  127

                  57

                  0.027

                   5-10 cm

                  91

                  37

                  44

                  45



                   > 10 cm

                  81

                  32

                  28

                  37



                   Missing

                  3

                  1



                  Malignancy grade FNCLCC



                   1

                  61

                  25

                  NR

                  74

                  <0.001

                   2

                  98

                  39

                  41

                  45



                   3

                  90

                  36

                  16

                  26



                  Tumor depth



                   Superficial

                  17

                  7

                  NR

                  93

                  <0.001

                   Deep

                  232

                  93

                  36

                  42



                  Metastasis at time of diagnosis



                   No

                  206

                  83

                  76

                  53

                  <0.001

                   Yes

                  43

                  17

                  10

                  10



                  Surgery



                   Yes

                  228

                  92

                  59

                  50

                  <0.001

                   No

                  21

                  8

                  5

                  0



                  Surgical margins



                   Wide

                  108

                  43

                  NR

                  62

                  <0.001

                   Non-wide

                  141

                  57

                  19

                  33



                  Chemotherapy



                   No

                  191

                  77

                  52

                  47

                  0.424

                   Yes

                  58

                  23

                  29

                  40



                  Radiotherapy



                   No

                  176

                  71

                  48

                  46

                  0.590

                   Yes

                  73

                  29

                  38

                  43



                  Abbreviations: MF/MFT, malignant fibroblastic/myofibroblastic tumors; MPNST, malignant peripheral nerve sheath tumor; STS, soft tissue sarcomas; NR, not reached; NOS, non specified.

                  The treatment option of choice was surgery (n = 228), seven patients received chemotherapy and/or radiotherapy only, and 14 patients received no therapy. A total of 120 patients received surgery only, 55 surgery and radiotherapy; 40 surgery and chemotherapy and 13 surgery, radiotherapy and chemotherapy. Two patients received chemotherapy only, three both chemotherapy and radiotherapy, and two radiotherapy only. The 5-year survival with non-wide resection margins was 33% and with wide resection margins 62%.

                  Inter-observer variability

                  There was good reproducibility between the two investigating pathologists. The scoring agreement was tested for M-CSF and CD68 expression in tumor. The IHC scores from each observer were compared using a two-way random effect model with absolute agreement definition. The intraclass correlation coefficients (reliability coefficients, r) obtained from these results were 0.85 for M-CSF (P < 0.001) and 0.90 for CD68 (P < 0.001).

                  Univariate analyses

                  Nationality, tumor size, malignancy grade, tumor depth, metastasis at time of diagnosis, surgery and surgical margins were all significant indicators for disease-specific survival (DSS) in univariate analyses (Table 1).

                  Besides, increased expression of M-CSF (P = 0.034), Ki67 (P < 0.001) and TGF-beta (p = 0.003) in tumor correlated significantly with a shorter DSS, (Table 2 and Figure 2). Co-expression of M-CSF and TGF-beta (p = 0.004) also correlated with shorter DSS. No such relationship was observed for CD57, CD68, and CSR-1R.
                  Table 2

                  Expression of markers in tumor and their prediction for disease-specific survival in patients with soft tissue sarcomas (univariate analysis; log-rank test), N = 249

                  Marker expression

                  Patients (n)

                  Patients (%)

                  Median survival (months)

                  5-Year survival (%)

                  P

                  CD 57



                   Low

                  93

                  37

                  54

                  49

                  0.617

                   High

                  135

                  54

                  49

                  48



                   Missing

                  21

                  8



                  CD 68



                   Low

                  57

                  23

                  91

                  52

                  0.270

                   High

                  172

                  69

                  45

                  47



                   Missing

                  20

                  8



                  M-CSF



                   Low

                  56

                  22

                  NR

                  59

                  0.034

                   High

                  169

                  68

                  38

                  44



                   Missing

                  24

                  10



                  CSF-1R



                   Low

                  38

                  15

                  41

                  44

                  0.832

                   High

                  191

                  77

                  38

                  46



                   Missing

                  20

                  8



                  Ki67



                   Low

                  31

                  12

                  NR

                  63

                  <0.001

                   Medium

                  63

                  25

                  NR

                  59



                   High

                  139

                  56

                  24

                  37



                   Missing

                  16

                  6



                  TGF-beta



                   Low

                  117

                  47

                  99

                  53

                  0.003

                   High

                  122

                  49

                  29

                  37



                   Missing

                  10

                  4



                  M-CSF and TGF-beta



                   Low

                  119

                  48

                  91

                  53

                  0.004

                   High

                  101

                  41

                  29

                  38



                   Missing

                  29

                  12



                  Abbreviations: NR, not reached.

                  http://static-content.springer.com/image/art%3A10.1186%2F1472-6890-12-7/MediaObjects/12907_2012_99_Fig2_HTML.jpg

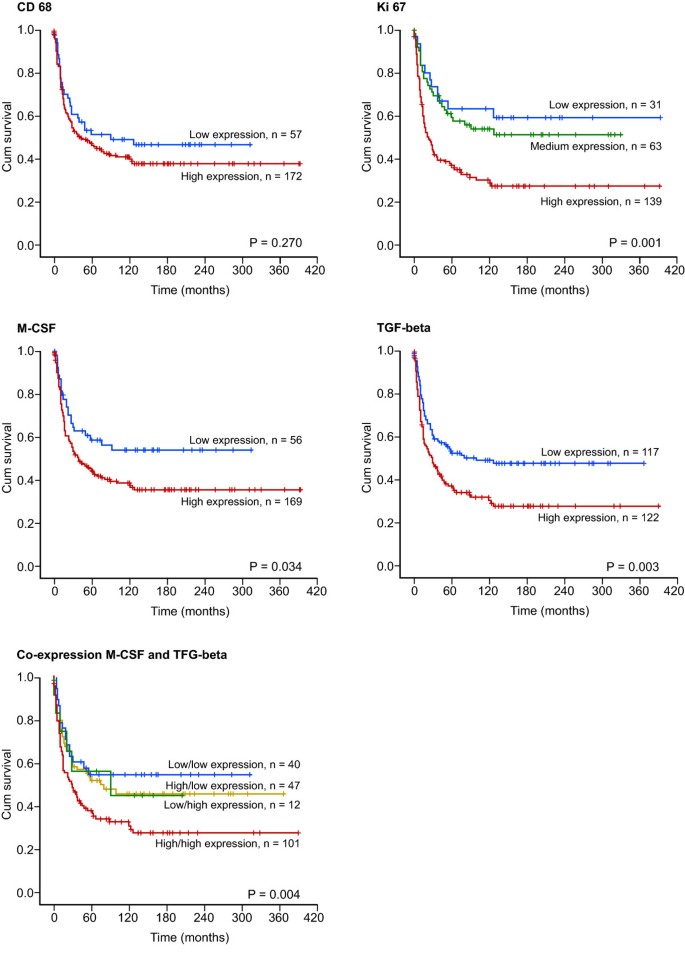

                  Figure 2

                  Disease-specific survival curves for high and low expression of CD68, Ki67, M-CSF, TGF-beta and co-expression M-CSF and TGF-beta in tumor in patients with STS (N = 249).

                  A shorter DSS with increased expression of M-CSF was seen in females (P = 0.025), Norwegian patients (P = 0.015) and in patients with tumors larger than 5 cm (P = 0.018, data not shown).

                  Increased expression of Ki67 in the peritumoral capsule correlated with a shorter DSS (N = 80, P < 0.001). Increased expression of CD68 in the peritumoral capsule tended to correlate with a shorter DSS, though not statistically significant (N = 80, P = 0.057), Table 3. No prognostic impact was observed for CD57, M-CSF, CSR-1R, TGF-beta or co-expression of M-CSF and TGF-beta. There was a correlation of expression of Ki67 in tumor (N = 249, P = 0.001) and metastasis at the time of the diagnosis, but not no correlation of expression of Ki67 in peritumoral capsule (N = 80, P = 0.395) and metastasis at the time of the diagnosis (data not shown).
                  Table 3

                  Expression of markers in peritumoral capsule and their prediction for disease-specific survival in patients with soft tissue sarcomas (univariate analysis; log-rank test), N = 80

                  Marker expression

                  Patients (n)

                  Patients (%)

                  Median survival (months)

                  5-Year survival (%)

                  P

                  CD 57



                   Low

                  50

                  63

                  38

                  47

                  0.797

                   High

                  29

                  36

                  123

                  55



                   Missing

                  1

                  1



                  CD 68



                   Low

                  34

                  43

                  NR

                  61

                  0.057

                   High

                  45

                  56

                  31

                  43



                   Missing

                  1

                  1



                  M-CSF



                   Low

                  36

                  45

                  75

                  54

                  0.608

                   High

                  39

                  49

                  36

                  46



                   Missing

                  5

                  6



                  CSF-1R



                   Low

                  36

                  45

                  52

                  49

                  0.587

                   High

                  37

                  46

                  57

                  47



                   Missing

                  7

                  9



                  Ki67



                   Low

                  32

                  40

                  NR

                  74

                  <0.001

                   High

                  37

                  46

                  29

                  35



                   Missing

                  11

                  14



                  TGF-beta



                   Low

                  43

                  54

                  52

                  50

                  0.906

                   High

                  28

                  35

                  31

                  50



                   Missing

                  9

                  11



                  M-CSF and TGF-beta



                   Low

                  24

                  30

                  80

                  57

                  0.626

                   High

                  42

                  53

                  31

                  45



                   Missing

                  14

                  18



                  Abbreviations: NR, not reached.

                  In co-variation analyses between malignancy grade and expression of the different markers in tumor, Ki67, CD68, M-CSF and TGF-beta showed statistical significance (data not shown). Increased expression of CD68 in tumor correlated with malignancy grade (P = 0.016) and expression of Ki67 (P < 0.001). Increased expression of M-CSF in tumor correlated with malignancy grade (P = 0.010) and expression of Ki67 (P = 0.002). Increased expression of TGF-beta in tumor correlated with malignancy grade (P = 0.029) and expression of Ki67 (P = 0.005), table 4 and 5. There was a co-variation between expression of M-CSF and TGF-beta in tumor (P < 0.001, data not shown). In crosstabulation the expected count in the low M-CSF, high TGF-beta group was 26.7 patients (data not shown), but the observed count was 12 patients (Figure 2).
                  Table 4

                  Results of expression of CD68 and M-CSF in tumor versus malignancy grade in patients with soft tissue sarcomas, N = 249

                  Expression

                  Malignancy grade (%)




                  Grade 1

                  Grade 2

                  Grade 3

                  Total

                  CD68, Low

                  23 (40)

                  16 (28)

                  18 (32)

                  57 (100)

                  CD68, High

                  37 (22)

                  73 (42)

                  62 (36)

                  172 (100)

                  Total

                  60 (26)

                  89 (39)

                  80 (35)

                  229 (100)

                  Missing

                  20



                  Chi-Square

                  8.319



                  P-value

                  0.016



                  Grade 1

                  Grade 2

                  Grade 3

                  Total

                  M-CSF, Low

                  23 (41)

                  18 (32)

                  15 (27)

                  56 (100)

                  M-CSF, High

                  35 (21)

                  67 (40)

                  67 (40)

                  169 (100)

                  Total

                  58 (26)

                  85 (38)

                  82 (37)

                  225 (100)

                  Missing

                  24



                  Chi-Square

                  9.300



                  P-value

                  0.010



                  Grade 1

                  Grade 2

                  Grade 3

                  Total

                  TGF-beta, Low

                  15 (13)

                  66 (56)

                  36 (31)

                  117 (100)

                  TGF-beta, High

                  6 (5)

                  71 (58)

                  45 (37)

                  122 (100)

                  Total

                  21 (9)

                  137 (57)

                  81 (34)

                  239 (100)

                  Missing

                  10



                  Chi-Square

                  7.091



                  P-value

                  0.029

                  Table 5

                  Results of expression of CD68 and M-CSF in tumor versus expression of Ki67 in patients with soft tissue sarcomas, N = 249

                  Expression

                  Ki67 (%)




                  Low

                  Medium

                  High

                  Total

                  CD68, Low

                  15 (27)

                  19 (35)

                  21 (38)

                  55 (100)

                  CD68, High

                  15 (9)

                  42 (25)

                  110 (66)

                  167 (100)

                  Total

                  30 (14)

                  61 (28)

                  131 (59)

                  222 (100)

                  Missing

                  27



                  Chi-Square

                  16.947



                  P-value

                  <0.001



                  Low

                  Medium

                  High

                  Total

                  M-CSF, Low

                  14 (26)

                  16 (30)

                  23 (43)

                  53 (100)

                  M-CSF, High

                  15 (9)

                  41 (25)

                  108 (66)

                  164 (100)

                  Total

                  29 (13)

                  57 (26)

                  131 (60)

                  217 (100)

                  Missing

                  32



                  Chi-Square

                  12.695



                  P-value

                  0.002



                  Low

                  Medium

                  High

                  Total

                  TGF-beta, Low

                  21 (18)

                  34 (30)

                  59 (52)

                  114 (100)

                  TGF-beta, High

                  7 (6)

                  28 (25)

                  79 (69)

                  114 (100)

                  Total

                  28 (12)

                  62 (27)

                  138 (31)

                  228 (100)

                  Missing

                  21



                  Chi-Square

                  10.749



                  P-value

                  0.005

                  Multivariate analyses

                  Significant demographic, clinicopathological, and expression variables from the univariate analyses were entered into the multivariate Cox regression analysis. In the multivariate analysis, the co-expression of M-CSF and TGF-beta in the tumor was an independent prognostic factor for DSS. Other independent negative prognostic variables were malignancy grade (P < 0.001), metastasis at time of diagnosis (P < 0.001) and non-wide resection margins (P = 0.001, Table 6).
                  Table 6

                  Results of Cox regression analysis summarizing significant independent prognostic factors in patients with soft tissue sarcomas



                  Tumor, N=249

                  Capsule, N=80

                  Factor

                  Hazard Ratio

                  95% CI

                  P

                  Hazard Ratio

                  95% CI

                  P

                  Nationality



                   Norwegian

                  1.000



                  1.000



                   Russian

                  0.948

                  0.603-1.490

                  0.816

                  0.588

                  0.263-1.312

                  0.194

                  Tumor size



                   < 5 cm

                  1.000



                  0.540*

                  1.000



                  0.342*

                   5-10 cm

                  1.103

                  0.687-1.770

                  0.685

                  0.888

                  0.376-2.099



                   > 10 cm

                  1.310

                  0.797-2.153

                  0.287

                  1.671

                  0.660-4.233



                  Malignancy grade FNCLCC



                   1

                  1.000



                  0.001*

                  1.000



                  0.051*

                   2

                  1.997

                  1.129-3.531

                  0.017

                  1.402

                  0.383-5.137

                  0.610

                   3

                  2.874

                  1.617-5.107

                  <0.001

                  2.954

                  0.837-10.432

                  0.092

                  Metastasis at time of diagnosis



                   No

                  1.000



                  1.000



                   Yes

                  2.842

                  1.855-4.354

                  <0.001

                  2.101

                  0.901-4.898

                  0.086

                  Resection margins



                   Wide

                  1.000



                  1.000



                   Non-wide

                  2.523

                  1.706-3.730

                  <0.001

                  2.245

                  1.077-4-680

                  0.031

                  Ki67



                   Low

                  1.000



                  0.432*

                  1.000



                   Medium

                  1.059

                  0.528-2.163

                  0.876

                  -

                  -

                  -

                   High

                  1.365

                  0.710-2.625

                  0.351

                  2.553

                  1.167-5.584

                  0.019

                  M-CSF



                   Low

                  1.000



                  NIA



                   High

                  0.815

                  0.463-1.435

                  0.478



                  TGF-beta



                   Low

                  1.000



                  NIA



                   High

                  0.682

                  0.247-1.881

                  0.460



                  M-CSF and TGF-beta



                   Low

                  1.000



                  NIA



                   High

                  1.532

                  1.062-2.208

                  0.022



                  * Overall significance as a prognostic factor. NIA = Not included in analysis.

                  In patients with tissue from peritumoral capsule, independent negative prognostic variables were non-wide resection margins (P = 0.031) and high expression of Ki67 (P = 0.019, Table 6)

                  Discussion

                  In this study we evaluated whether there is an association between the expression of CD57, CD68, M-CSF, CSF-1R, Ki67 and TGF-beta in tumors or peritumoral capsule and survival in 249 non-GIST STS patients. Increased co-expression of M-CSF and TGF-beta in the tumor and increased expression of Ki67 in the peritumoral capsule were independent negative prognostic factors for DSS in patients with STS. High expression of M-CSF in tumor was correlated with high malignancy grade, increased Ki67 and short DSS. To our knowledge, this is the first report on co-expression of M-CSF and TGF-beta in STS and the first evidence of its possible clinical relevance in STS patients.

                  STS have varying biological characteristics regardless of histological entities. Its prognosis is poor, but also difficult to predict. This aggressive behavior reflects, at least in part, the capacity of the tumor to evade host immune surveillance. Evasion strategies can protect cancer cells from immune responses by a variety of mechanisms including self-tolerance, sequestration of tissue from surveillance, antigen shedding, lymphocyte killing, secretion of immunosuppressive cytokines, lack of MHC II expression, lack of co-stimulatory molecules and local secretion of prostaglandins.

                  CD57 positive cells have been implicated in the resistance against malignant and virally-infected cells. Presence of these cells was observed to be an independent prognostic marker for a better DSS in squamous cell carcinoma [31] and adenocarcinoma [32] of the lung, as well as in other cancers such as colonic and gastric carcinomas [14, 15]. In NSCLS, high density of stromal CD57 positive cells was an independent, positive prognostic factor for DSS, whereas high density of CD57 positive cells within neoplastic cell areas was not [33]. In our material there was no such correlation in tumor or peritumoral capsule. The location of infiltrating lymphocytes may be important. There are major differences between 1) inflammatory cells within cancer cell nests in carcinomas (epithelial CD57 positive cells); 2) inflammatory cells present in the stroma of epithelial tumors (stromal CD57 positive cells), 3) inflammatory cells present along the invasive margins (peritumoral CD57 positive cells); and, 4) inflammatory cells in the peritumoral capsule of stromal tumors such as STS.

                  In addition to NK-cells, expression of CD57 is also found on T-lineage lymphocytes, where it is currently considered a marker-replicative senescence (“clonal exhaustion”), i.e., a high susceptibility to activation-induced cell death and the inability to undergo new cell-division cycles despite preserved ability to secrete cytokines upon encounter with their cognate antigen [34]. Even on NK cells it does not constitute a one-marker-labels-all solution: CD57 defines a functionally distinct population of mature NK cells in the human CD56dim CD16+ NK-cell subset [35].

                  Studies have demonstrated a close association between M-CSF and tumor progression in lung cancer cell lines [36]. In a NSCLC cohort studied by Kaminska et al. [37], high pretreatment serum levels of M-CSF were an independent predictor of poor survival in these patients. However, Al-Shibli et al. [33] did not find any correlation between expression of M-CSF in NSCLC and DSS. CSF-1 protected osteoclasts from suppressive effects of transforming growth factor beta (TGF-beta) in a mouse mammary tumor cell line [38]. Kirma et al. studied M-CSF and TGF-beta in cervical cancer and found that CSF-1R (c-fms proto-oncogene product) activation may play a role in cervical carcinogenesis [39]. Richardsen et al. [27] showed that high M-CSF expression was correlated with a high malignancy grade in STS. In our study, high M-CSF expression in tumor correlated with a high malignancy grade, increased Ki67 and DSS in univariate analyses. But the expression of M-CSF in peritumoral capsule showed no correlation with DSS.

                  TGF-beta is a multifunctional cytokine known to induce G1 arrest in order to end proliferation, induce differentiation, or promote apoptosis in normal cells, thus being a natural tumor-suppressive agent. Though in tumorigenesis this mediator initiates EMT through activation of Smad and non-Smad signalling pathways[40]. Such pro-neoplastic action becomes possible through either blockade of the TGF-beta pathway with receptor-inactivating mutations, or selective inactivation of the tumor-inhibiting arm of this pathway[41]. High TGF-beta expression was an independent negative prognostic factor for disease specific survival in STS[42]. In the multivariate analysis, co-expression of M-CSF and TGF-beta were an even stronger negative prognostic factor in this study. We found a co-variation of expression of M-CSF and TGF-beta in tumor. TFG-beta might regulate the expression of M-CSF. Grayfer et al. reported on the regulation of pro-inflammatory functions of goldfish macrophages and induction of gene expression by recombinant goldfish CSF-1 (rgCSF-1). At 72 h post treatment rgCSF-1 increased the expression of TGF-beta [43]. The combined expression of immunostimulatory granulocyte macrophage colony stimulating factor (GM-CSF) and antitumor suppressor TGF-β2 antisense (AS) transgenes can break tolerance and stimulate immune responses to cancer-associated antigens which make it possible to design bifunctional therapeutic anti-cancer vaccines[44].

                  Increased expression of Ki67 and M-CSF in tumor are negative prognostic indicators for patients with STS, but this is not independent of malignancy grade. In the univariate analysis presented TGF-beta seems to be the dominating factor, while low or high M-CSF expression in combination with low TGF-beta expression does not seem to influence prognosis significantly. Both expression of TGF-beta and M-CSF have co-variation with malignancy grade and expression of Ki67. In the multivariate analysis the co-expression of M-CSF and TGF-beta was a stronger prognosticator for DSS than each of the markers alone. Expression of Ki67 in tumor was not an independent prognosticator. As mitotic activity is one of the criteria determining the malignancy grade, expression of Ki67 is closely correlated to mitotic activity, hence also malignancy grade [45]. Archad et al. found that malignancy grade is a more important prognostic factor in glial neoplasms than Ki67 [19]. So Ki67 may not provide additional information if the tumor malignancy grade is classified correctly. The tumor stroma is important for cancer progression [46]. There is no evaluation of tumor stroma in the grading systems of STS. But Ki67 expression in the peritumoral capsule may have prognostic impact in addition to malignancy grading of the tumor. Further research is needed to determine whether an increased expression of Ki67 may be the result of on increased migration of fast-proliferating cells in the peritumoral capsule or an enhanced proliferation effect of tumor-released cytokines on the stromal cells.

                  Conclusion

                  In summary, increased co-expression of M-CSF and TGF-beta in tumor and increased Ki67 expression in the peritumoral capsule of STS patients were independent negative prognostic factors for DSS. This data may provide additional information to guide therapy after surgical resection.

                  Declarations

                  Acknowledgements

                  Thanks to Frode Skjold for coupling of databases and Magnus L. Persson for making the TMA blocks.

                  Authors’ Affiliations

                  (1)
                  Dept of Clinical Pathology, University Hospital of North Norway
                  (2)
                  Institute of Medical Biology, University of Tromso
                  (3)
                  Dept of Oncology, University Hospital of North Norway
                  (4)
                  Institute of Clinical Medicine, University of Tromso
                  (5)
                  Dept of Pathology, Nordland Central Hospital

                  References

                  1. Gustafson P: Soft tissue sarcoma. Epidemiology and prognosis in 508 patients. Acta Orthop Scand Suppl 1994, 259:1–31.PubMed
                  2. Jemal A, Siegel R, Ward E, Hao Y, Xu J, Thun MJ: Cancer statistics, 2009. CA Cancer J Clin 2009, 59:225–249.PubMedView Article
                  3. Dickinson IC, Whitwell DJ, Battistuta D, Thompson B, Strobel N, Duggal A, et al.: Surgical margin and its influence on survival in soft tissue sarcoma. ANZ J Surg 2006, 76:104–109.PubMedView Article
                  4. Kiatisevi P, Asavamongkolkul A, Phimolsarnti R, Waikakul S, Benjarassamerote S: The outcomes and prognostic factors of patients with soft-tissue sarcoma. J Med Assoc Thai 2006, 89:334–342.PubMed
                  5. Koea JB, Leung D, Lewis JJ, Brennan MF: Histopathologic type: an independent prognostic factor in primary soft tissue sarcoma of the extremity? Ann Surg Oncol 2003, 10:432–440.PubMedView Article
                  6. Mendenhall WM, Zlotecki RA, Hochwald SN, Hemming AW, Grobmyer SR, Cance WG: Retroperitoneal soft tissue sarcoma. Cancer 2005, 104:669–675.PubMedView Article
                  7. Raney RB, Crist WM, Maurer HM, Foulkes MA: Prognosis of children with soft tissue sarcoma who relapse after achieving a complete response. a report from the Intergroup Rhabdomyosarcoma Study I. Cancer 1983, 52:44–50.PubMedView Article
                  8. Yang RS, Lane JM, Eilber FR, Dorey FJ, al Shaikh R, Schumacher LY, et al.: High grade soft tissue sarcoma of the flexor fossae. Size rather than compartmental status determine prognosis. Cancer 1995, 76:1398–1405.PubMedView Article
                  9. Zagars GK, Ballo MT, Pisters PW, Pollock RE, Patel SR, Benjamin RS: Prognostic factors for disease-specific survival after first relapse of soft-tissue sarcoma: analysis of 402 patients with disease relapse after initial conservative surgery and radiotherapy. Int J Radiat Oncol Biol Phys 2003, 57:739–747.PubMedView Article
                  10. Ottaiano A, De Chiara A, Fazioli F, Talamanca AA, Mori S, Botti G, et al.: Biological prognostic factors in adult soft tissue sarcomas. Anticancer Res 2005, 25:4519–4526.PubMed
                  11. Salgaller ML: The development of immunotherapies for non-small cell lung cancer. Expert Opin Biol Ther 2002, 2:265–278.PubMedView Article
                  12. de Visser KE, Eichten A, Coussens LM: Paradoxical roles of the immune system during cancer development. Nat Rev Cancer 2006, 6:24–37.PubMedView Article
                  13. Smyth MJ, Crowe NY, Hayakawa Y, Takeda K, Yagita H, Godfrey DI: NKT cells - conductors of tumor immunity? Curr Opin Immunol 2002, 14:165–171.PubMedView Article
                  14. Coca S, Perez-Piqueras J, Martinez D, Colmenarejo A, Saez MA, Vallejo C, et al.: The prognostic significance of intratumoral natural killer cells in patients with colorectal carcinoma. Cancer 1997, 79:2320–2328.PubMedView Article
                  15. Ishigami S, Natsugoe S, Tokuda K, Nakajo A, Che X, Iwashige H, et al.: Prognostic value of intratumoral natural killer cells in gastric carcinoma. Cancer 2000, 88:577–583.PubMedView Article
                  16. Lv L, Pan K, Li XD, She KL, Zhao JJ, Wang W, et al.: The Accumulation and Prognosis Value of Tumor Infiltrating IL-17 Producing Cells in Esophageal Squamous Cell Carcinoma. PLoS One 2011, 6:e18219.PubMedView Article
                  17. Wu J, Lanier LL: Natural killer cells and cancer. Adv Cancer Res 2003, 90:127–156.PubMedView Article
                  18. Zhang T, Sentman CL: Cancer immunotherapy using a bispecific NK receptor fusion protein that engages both T cells and tumor cells. Cancer Res 2011, 71:2066–2076.PubMedView Article
                  19. Arshad H, Ahmad Z, Hasan SH: Gliomas: correlation of histologic grade, Ki67 and p53 expression with patient survival. Asian Pac J Cancer Prev 2010, 11:1637–1640.PubMed
                  20. Aune G, Stunes AK, Tingulstad S, Salvesen O, Syversen U, Torp SH: The proliferation markers Ki-67/MIB-1, phosphohistone H3, and survivin may contribute in the identification of aggressive ovarian carcinomas. Int J Clin Exp Pathol 2011, 4:444–453.PubMed
                  21. Karim RZ, Gerega SK, Yang YH, Spillane A, Carmalt H, Scolyer RA, et al.: p16 and pRb immunohistochemical expression increases with increasing tumour grade in mammary phyllodes tumours. Histopathology 2010, 56:868–875.PubMedView Article
                  22. Takeshita A, Kimura W, Hirai I, Takasu N, Moriya T, Tezuka K, Watanabe T: Clinicopathologic study of the MIB-1 labeling index (Ki67) and postoperative prognosis for intraductal papillary mucinous neoplasms and ordinary ductal adenocarcinoma. Pancreas 2012,41(1):114–20.PubMedView Article
                  23. Wojnar A, Kobierzycki C, Krolicka A, Pula B, Podhorska-Okolow M, Dziegiel P: Correlation of Ki-67 and MCM-2 proliferative marker expression with grade of histological malignancy (G) in ductal breast cancers. Folia Histochem Cytobiol 2010, 48:442–446.PubMedView Article
                  24. Lopez-Guerrero JA, Machado I, Scotlandi K, Noguera R, Pellin A, Navarro S, et al.: Clinicopathological significance of cell cycle regulation markers in a large series of genetically confirmed Ewing's sarcoma family of tumors. Int J Cancer 2011, 128:1139–1150.PubMedView Article
                  25. Sorbye SW, Kilvaer T, Valkov A, Donnem T, Smeland E, Al-Shibli K, et al.: Prognostic impact of lymphocytes in soft tissue sarcomas. PLoS One 2011, 6:e14611.PubMedView Article
                  26. Sorbye SW, Kilvaer TK, Valkov A, Donnem T, Smeland E, Al-Shibli K, et al.: Prognostic impact of peritumoral lymphocyte infiltration in soft tissue sarcomas. BMC Clin Pathol 2012, 12:5.PubMedView Article
                  27. Richardsen E, Sorbye SW, Crowe JP, Yang JL, Busund LT: Expression of M-CSF and CSF-1R is correlated with histological grade in soft tissue tumors. Anticancer Res 2009, 29:3861–3866.PubMed
                  28. Bremnes RM, Veve R, Gabrielson E, Hirsch FR, Baron A, Bemis L, et al.: High-throughput tissue microarray analysis used to evaluate biology and prognostic significance of the E-cadherin pathway in non-small-cell lung cancer. J Clin Oncol 2002, 20:2417–2428.PubMedView Article
                  29. Donnem T, Al Saad S, Al Shibli K, Delghandi MP, Persson M, Nilsen MN, et al.: Inverse prognostic impact of angiogenic marker expression in tumor cells versus stromal cells in non small cell lung cancer. Clin Cancer Res 2007, 13:6649–6657.PubMedView Article
                  30. Nocito A, Kononen J, Kallioniemi OP, Sauter G: Tissue microarrays (TMAs) for high-throughput molecular pathology research. Int J Cancer 2001, 94:1–5.PubMedView Article
                  31. Villegas FR, Coca S, Villarrubia VG, Jimenez R, Chillon MJ, Jareno J, et al.: Prognostic significance of tumor infiltrating natural killer cells subset CD57 in patients with squamous cell lung cancer. Lung Cancer 2002, 35:23–28.PubMedView Article
                  32. Takanami I, Takeuchi K, Giga M: The prognostic value of natural killer cell infiltration in resected pulmonary adenocarcinoma. J Thorac Cardiovasc Surg 2001, 121:1058–1063.PubMedView Article
                  33. Al Shibli K, Al Saad S, Donnem T, Persson M, Bremnes RM, Busund LT: The prognostic value of intraepithelial and stromal innate immune system cells in non-small cell lung carcinoma. Histopathology 2009, 55:301–312.PubMedView Article
                  34. Focosi D, Bestagno M, Burrone O, Petrini M: CD57+ T lymphocytes and functional immune deficiency. J Leukoc Biol 2010, 87:107–116.PubMedView Article
                  35. Lopez-Verges S, Milush JM, Pandey S, York VA, Arakawa-Hoyt J, Pircher H, et al.: CD57 defines a functionally distinct population of mature NK cells in the human CD56dimCD16+ NK-cell subset. Blood 2010, 116:3865–3874.PubMedView Article
                  36. Pei XH, Nakanishi Y, Takayama K, Bai F, Hara N: Granulocyte, granulocyte-macrophage, and macrophage colony-stimulating factors can stimulate the invasive capacity of human lung cancer cells. Br J Cancer 1999, 79:40–46.PubMedView Article
                  37. Kaminska J, Kowalska M, Kotowicz B, Fuksiewicz M, Glogowski M, Wojcik E, et al.: Pretreatment serum levels of cytokines and cytokine receptors in patients with non-small cell lung cancer, and correlations with clinicopathological features and prognosis. M-. Oncology 2006, 70:115–125.View Article
                  38. Yagiz K, Rittling SR: Both cell-surface and secreted CSF-1 expressed by tumor cells metastatic to bone can contribute to osteoclast activation. Exp Cell Res 2009, 315:2442–2452.PubMedView Article
                  39. Kirma N, Hammes LS, Liu YG, Nair HB, Valente PT, Kumar S, et al.: Elevated expression of the oncogene c-fms and its ligand, the macrophage colony-stimulating factor-1, in cervical cancer and the role of transforming growth factor-beta1 in inducing c-fms expression. Cancer Res 2007, 67:1918–1926.PubMedView Article
                  40. Vincent T, Neve EP, Johnson JR, Kukalev A, Rojo F, Albanell J, et al.: A SNAIL1-SMAD3/4 transcriptional repressor complex promotes TGF-beta mediated epithelial-mesenchymal transition. Nat Cell Biol 2009, 11:943–950.PubMedView Article
                  41. Massague J: TGFbeta in Cancer. Cell 2008, 134:215–230.PubMedView Article
                  42. Valkov A, Sorbye SW, Kilvaer TK, Donnem T, Smeland E, Bremnes RM, et al.: The prognostic impact of TGF-beta1, fascin. NF-kappaB and PKC-zeta expression in soft tissue sarcomas. PLoS One 2011, 6:e17507.
                  43. Grayfer L, Hanington PC, Belosevic M: Macrophage colony-stimulating factor (CSF-1) induces pro-inflammatory gene expression and enhances antimicrobial responses of goldfish (Carassius auratus L.) macrophages. Fish Shellfish Immunol 2009, 26:406–413.PubMedView Article
                  44. Olivares J, Kumar P, Yu Y, Maples PB, Senzer N, Bedell C, et al.: Phase I trial of TGF-beta 2 antisense GM-CSF gene-modified autologous tumor cell (TAG) vaccine. Clin Cancer Res 2011, 17:183–192.PubMedView Article
                  45. Gontero P, Sidhu PS, Muir GH: Penile fracture repair: assessment of early results and complications using color Doppler ultrasound. Int J Impot Res 2000, 12:125–128.PubMedView Article
                  46. Bremnes RM, Donnem T, Al Saad S, Al Shibli K, Andersen S, Sirera R, et al.: The role of tumor stroma in cancer progression and prognosis: emphasis on carcinoma-associated fibroblasts and non-small cell lung cancer. J Thorac Oncol 2011, 6:209–217.PubMedView Article
                  47. Pre-publication history

                    1. The pre-publication history for this paper can be accessed here:http://​www.​biomedcentral.​com/​1472-6890/​12/​7/​prepub

                  Copyright

                  © Sorbye et al.; licensee BioMed Central Ltd. 2012

                  This article is published under license to BioMed Central Ltd. This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://​creativecommons.​org/​licenses/​by/​2.​0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
